NEW

QUANTUM 638 DIGITAL
MIXING CONSOLE

Own the room! Own the stage!

Quantum112 Summary
  • 256 Input Channels
  • 128 Aux / Sub-Group Busses
  • LR/LCR/LCRS/5.1 Master Buss
  • 48 x 48 Full Processing Matrix
  • 566 Dynamic Equalizers
  • 48/96 kHz Sample Rate

Quantum 638: Own the room. Own the stage!

Quantum 638, 익숙한 설계. 본질은 Quantum.


Quantum 638은 처음부터 새롭게 설계되었습니다. 익숙하면서도 미래지향적인 이 콘솔은 DiGiCo 라인업 전반에서 가장 성공적인 설계 요소와 최신 Quantum 기술을 결합했습니다.

탁월한 프로세싱 파워, 진보된 기능, 그리고 DiGiCo 특유의 유연성을 제공하여, 모든 프로덕션 환경을 위한 강력한 오퍼레이터 중심 플랫폼을 완성합니다.


세 개의 주광에서도 선명한 터치스크린과 정제된 워크서피스 디자인으로 깔끔하게 구성된 Quantum 638은 검증된 워크플로우, 막강한 프로세싱 성능, 그리고 Quantum 생태계의 모든 역량을 하나로 통합합니다. 그 결과, Quantum 638은 현재뿐만 아니라 미래를 위해 설계된 콘솔입니다.


Under The Hood.

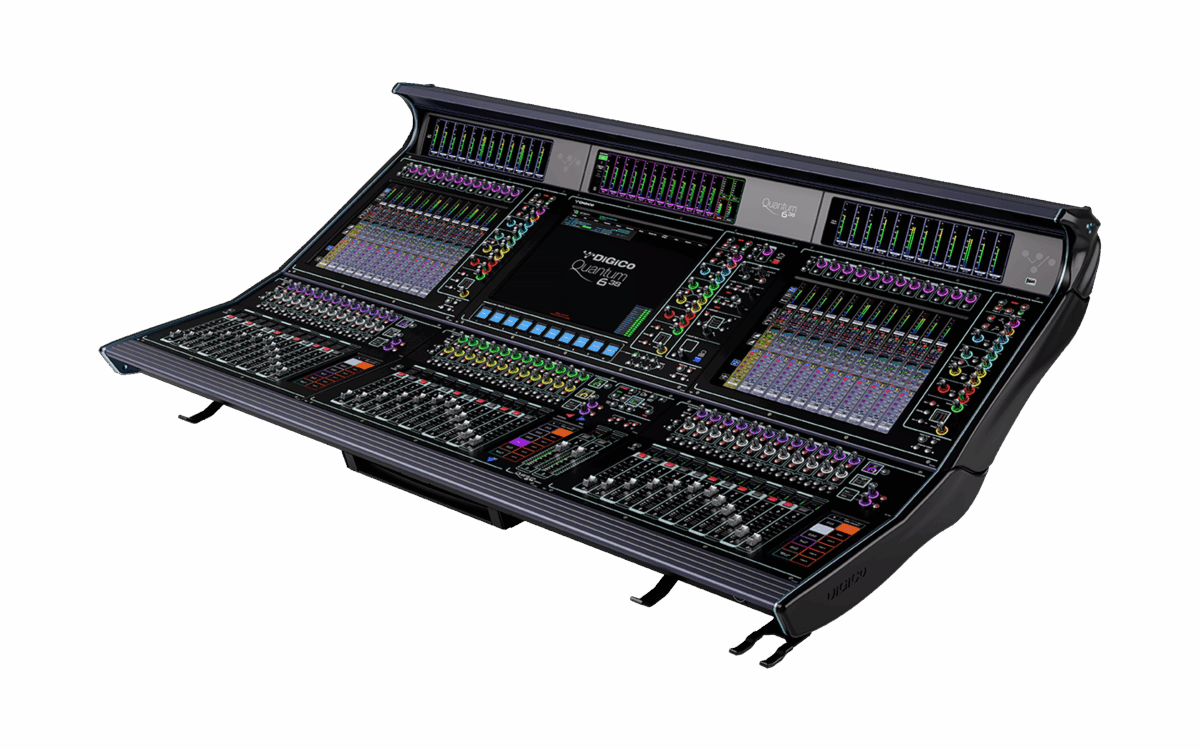

DiGiCo Quantum 638은 싱글 또는 듀얼 엔진 구성이 가능한 256채널 믹싱 콘솔로, 38개의 물리 페이더와 3개의 17인치 고해상도 LCD 터치스크린을 갖추고 있습니다. 5개의 대규모 FPGA가 제공하는 강력한 성능을 결합한 Quantum 638은 디지털 믹싱 콘솔의 기준을 새롭게 정의합니다.


최대 256개의 입력 채널, 128개의 Aux / Sub-Group 버스, 그리고 익숙한 LR / LCR / 5.1 Master 버스를 제공합니다. 또한 48 x 48 프로세싱 매트릭스, 36개의 컨트롤 그룹, 2개의 Solo 버스, 48개의 FX Rack 슬롯, 32개의 그래픽 EQ를 탑재하고 있습니다. 기본 사양으로는 Mustard Processing 채널 스트립, Spice Rack 플러그인 스타일의 네이티브 FPGA 프로세싱 옵션, Nodal Processing, True Solo가 포함됩니다.


I/O

With the arrival of the new Quantum 638, it couldn’t provide anything but the best when it comes to connectivity.


Local I/O: Quantum 638’s local I/O includes 8 Stadius 32 bit analogue inputs, 8 Stadius 32 bit analogue outputs and 8 Bit Perfect AES I/O


MADI: Quantum 638 offers 8 MADI in/out at 48kHz, which can also be configured as 4 redundant MADI I/O with full channel count at 96kHz.


Optocore: The  Quantum 638 comes as standard with one Optocore fibre loop, which is 504 channels of audio; there can be up to 14 DiGiCo racks, or a combination of racks and tie-lines around the loop. There is also the option to upgrade to dual Optocore loops. That’s 1,008 Optocore channels of audio and 28 racks running.


DMI: We have also incorporated four dedicated DMI slots (two per engine) to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 48 x 48 I/O.


fourier: The Quantum 638 provides fourier connectivity as standard.

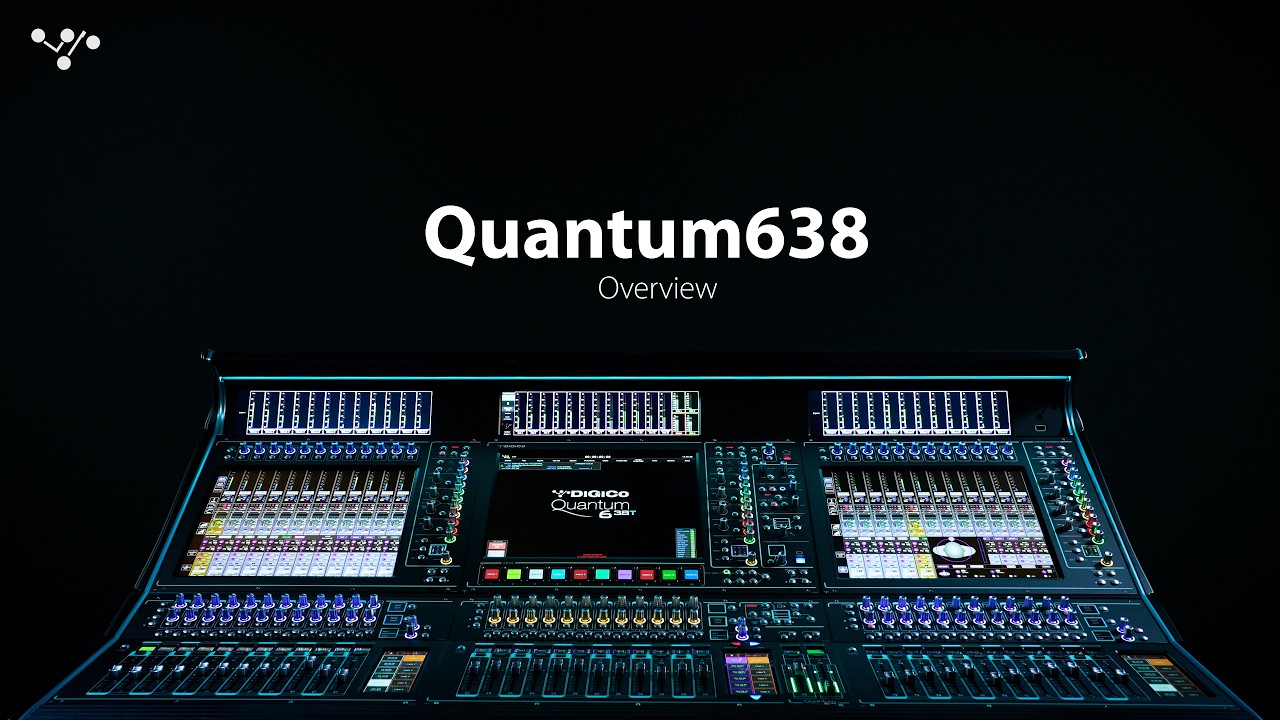

Sales Video

동영상 재생

DMI Card Options

더보기

I/O Racks & Options

The following rack options are available:

다음 랙 옵션을 사용할 수 있습니다.

더보기

The following interfaces and accessories are available:

다음 인터페이스 및 액세서리를 사용할 수 있습니다.

더보기

Other related products:

기타 관련 제품

더보기

High Rez Image Gallery

DiGiCo Quantum Stats

256

INPUT CHANNELS

566

DYNAMIC EQ

438

DIGITUBES

48

DIGITAL FX

Quantum 638 Specifications

  • > Faders: 38 x 100mm touch-sensitive
  • > Screens: 3 x 17” LCD high-brightness, high-resolution touch screens + 3 x 6.8″ LCD high-brightness, high-resolution touch screens
  • > TFT Screens: 38 x 1.3″ touch sensitive full colour LCD display + 15 x 1.3″ full colour LCD displays
  • > Meterbridge: 3 x Custom Mounted 14″ LCD high – brightness, high – resolution screens
  • > Redundancy: Internal removable engine x 2
  • > Internal hot-swappable PSU x 2
  • > Input Channels: 256
  • > Busses Up: 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
  • > Matrix: 48 Input / 48 Outputs with full processing
  • > Control Groups: 36, selectable for VCA-style, Moving fader, Mute Group
  • > Graphic Eq: 32 x 32-band, Gain +/- 12dB
  • > Internal FX: 48 stereo effects comprising floating point reverbs plus delay/chorus/pitch/enhancer
  • > Spice Rack: 16 mono / 8 stereo Rack Slots
  • > Mustard Proc: 64 Processing Strips
  • > Nodal Proc: 128 Nodal Processors
  • > Local I/O 8 x mic/line I/O, 8 x AES I/O
  • > 8 x MADI interfaces @ 48kHz,  4 redundant interfaces @ 96kHz, BNC connectivity
  • > Standard Optocore (Dual Loop – Optional)
  • > Sampling rates 48kHz / 96kHz
  • > GPIO: 1 x DSub37
  • > DMI: 2 x DiGiCo Multichannel Interface
  • > fourier: Factory Fitted Option
  • > Ext Sync Wordclock, AES, MADI, Optocore
  • > Sample Rate: 48kHz or 96kHz
  • > Processing Delay: TBC
  • > Internal Processing: Up to 40-bit, Floating Point
  • > A>D & D>A: 32-bit Converter Bit Depth
  • > Frequency Response: TBC
  • > THD: TBC
  • > Channel Separation: TBC
  • > Residual Output Noise: TBC
  • > Microphone Input: TBC
  • > Maximum Output Level: TBC
  • > Maximum Input Level: TBC
  • > Name: User-Defined / Presets
  • > Channel Selection: Mono / Stereo / Multi
  • > Input Routing: Main & Alternate Input
  • > Analogue Gain: -20 to +60dB
  • > Phase: Normal / Reverse
  • > Digital Trim: -40 to +40dB
  • > Delay: Up to 1.3s
  • > DiGiTuBe: Drive 0.01 – 50.0
       Bias 0 – 6
  • > LPF: 20 – 20kHz, 24dB/Oct
  • > HPF: 20 – 20kHz, 24dB/Oct
  • > Insert A: (Pre EQ/Dyn) On/Off
  • > Equalisation: 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
    　On/Off
    　Freq; 20 – 20kHz
    　Gain; +/- 18dB
    　Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
    　Dynamic EQ On/Off
    　Over/Under
    　Band On/Off
    　Threshold; -60 – 0dB
    　Attack; 500us – 100ms
    　Release; 10ms – 10s
    　Ratio; 1:1 – 50:1
  • > Dynamics 1: Single or Multiband (3-Band)Compressor:
    　On/Off
    　Threshold; -60 – 0dB
    　Attack; 500us – 100ms
    　Release; 10ms – 10s
    　Ratio; 1:1 – 50:1
    　Gain; 0 to +40dB with Autogain Option
    　Link; Any Channel/Buss
    　Hi Crossover; 20Hz – 20kHz
    　Lo Crossover; 20Hz – 20kHz
    　Knee : Hard, Med, SoftDe-Esser:
    　Threshold : 20us – 20ms
    　Release : 1ms – 100ms
    　Ratio : 1:1 – 50:1
    　Ess-Band : Listen On/Off
    　Ess-Band Filter Freq / Width: 20Hz – 20kHz
  • > Dynamics 2: On/OffGate / Ducker:
    　Threshold; -60 – 0dB
    　Attack; 50us – 100ms
    　Hold; 2ms – 2s
    　Release; 5ms – 5s
    　Range; 0 – 90dB
    　Key; Any Source
    　Key Listen
    　Freq/Width; 20 – 20kHzCompressor:
    　On/Off
    　Threshold; -60 – 0dB
    　Attack; 500us – 100ms
    　Release; 10ms – 10s
    　Ratio; 1:1 – 50:1
    　Gain; 0 to +40dB with Autogain Option
    　Link; Any Channel / Buss
    　Hi Crossover; 20Hz – 20kHz
    　Lo Crossover; 20Hz – 20kHz
    　S/C Source : Any Source
    　S/C Listen : On/Off
    　S/C Filter Freq/Width: 20Hz – 20kHz
  • > Insert B: (Post EQ/Dyn) On/Off
  • > EQ/Dyn order: EQ/Dyn or Dyn/EQ
  • > Mute: Channel Mute / Hard Mute
  • > Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
  • > Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs, Full Safe
  • > Output Routing: Buss, Insert A, Insert B, FX
       Direct: On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB
  • > Fader: 100mm Motorised Fader ∞ to +10dB
  • > Name: User-Defined / Presets
  • > Phase: Normal / Reverse
  • > Digital Trim: -20 to +60dB
  • > Delay: Up to 1.3 sec
  • > DiGiTuBe: Drive 0.01 – 50.0
       Bias 0 – 6
  • > LPF: 20 – 20kHz, 24dB / Oct
  • > HPF: 20 – 20kHz, 24dB / Oct
  • > Insert A: (Pre EQ/Dyn) On/Off
  • > Equalisation: 8 Band EQ: 4 band Parametric and 4 band parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-   Mid/Hi Shelf, Hi/Hishelf)
       On/Off
       Freq; 20 – 20kHz
       Gain; +/- 18dB
       Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
       Dynamic EQ On/Off
       Over/Under
       Band On/Off
       Threshold; -60 – 0dB
       Attack; 500us – 100ms
       Release; 10ms – 10s
       Ratio; 1:1 – 50:1
  • > Dynamics 1: Single or Multiband (3-band)Compressor:
       On/Off
       Threshold; -60 – 0dB
       Attack; 500us – 100ms
       Release; 10ms – 10s
       Ratio; 1:1 – 50:1
       Gain; 0 to +40dB with Autogain Option
       Link; Any Channel / Buss
       Hi Crossover; 20Hz – 20kHz
       Lo Crossover; 20Hz – 20kHz
       Knee : Hard, Med, SoftDe-Esser:
       Threshold: 20us – 20ms
       Release: 1ms – 100ms
       Ratio: 1:1 – 50:1
       Ess-Band: Listen On/Off
       Ess-Band Filter Freq/Width: 20Hz – 20kHz
  • > Dynamics 2: On/OffGate / Ducker:
       Threshold; -60 – 0dB
       Attack; 50us – 100ms
       Hold; 2ms – 2s
       Release; 5ms – 5s
       Range; 0 – 90dB
       Key; Any Source
       Key Listen
       Freq/Width; 20 – 20kHzCompressor:
       On/Off
       Threshold; -60 – 0dB
       Attack; 500us – 100ms
       Release; 10ms – 10s
       Ratio; 1:1 – 50:1
       Gain; 0 to +40dB with Autogain Option
       Link; Any Channel/Buss
       Hi Crossover; 20Hz – 20kHz
       Lo Crossover; 20Hz – 20kHz
       S/C Source : Any source
       S/C Listen : On/Off
       S/C Filter Freq/Width: 20Hz – 20kHz
  • > Insert B: (Post EQ/Dyn) On/Off
  • > EQ/Dyn Order: EQ/Dyn or Dyn/EQ
  • > Mute: Channel Mute / Hard Mute
  • > Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
  • > Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
  • > Output Routing: Outputs, Insert A, Insert B, FX
  • > Fader: 100mm Motorised Fader ∞ to +10dB




  • > Preamplifier Tubes:
       Variable Drive
       Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets
       Variable Output Gain
  • > Preamplifier Amp:
       Variable Drive
       Odd/Even 1st stage harmonics
       Bias & Saturate control
       Off/Odd/Even 2nd stage harm
       Variable HF Boost
       Variable Output Gain
  • > Equalisation: 4 band EQ: Parametric (lowshelf / bell, lower-mid bell / all-pass, upper-mid bell / all-pass, hishelf / bell)
       HPF & LPF 4th order filters
  • > Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter
  • > Dynamics 2: Gate / Ducker
