Astral ARX8

Astral ARX8

4-, 6-, or 8-Channel Portable True-Diversity Wireless Receiver with SpectraBand.

• 4-channel ultra-high-performance, true-diversity receivers in a half-rack size (8.0” x 6.6” x 1.6” / 20.3cm x 16.8cm x 4.1cm).
• Expandable to 6 or 8 channels via Astral ARX8 2-Channel Expansion Licenses.
• 169 MHz – 1525 MHz tuning range via SpectraBand Technology.
• NexLink: integrated, long-distance remote control of all wireless transmitters, including group power on/off.
• AutoAssign: automatic deployment of clean frequencies in seconds.

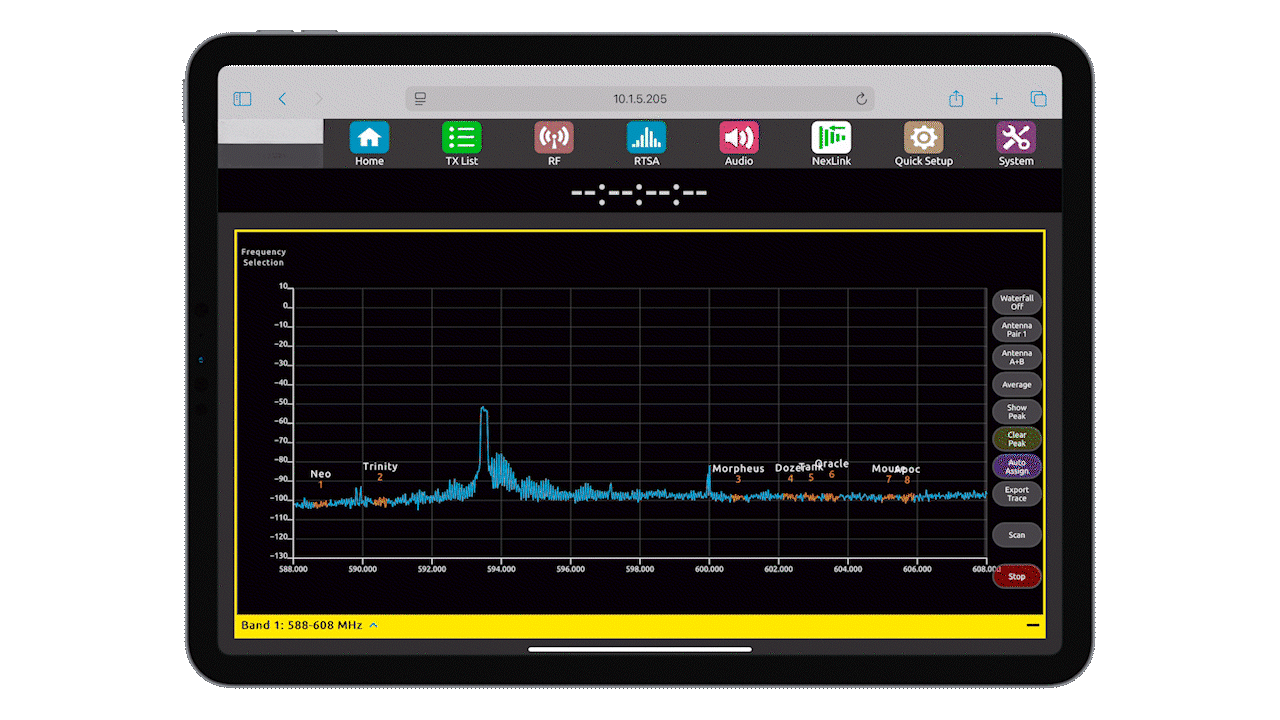

• Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
• Flexible powering: via DC input, 8-Series, or AC mains (with optional adapter).
• DB-25 connector for 8 channels of mic, line, or AES outputs.
• Wide, 6.2” color OLED array with touch for control and monitoring.
• Astral-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools or additional hardware.
• Supports GainForward Architecture: No gain setting on the Astral transmitter. Adjust gain at the receiver or mixer.

•   100% digital long-range modulation delivers the longest transmission distance of any digital system on the market. 
• RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
• Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
• BNC timecode input for auto timecode sync of transmitters over NexLink.
• Front panel and rear panel BNC antenna inputs. Compatible with passive and bias-powered antennas
• Supports control of the Wisycom LFA smart antenna.
• Cascade out option on rear BNCs for cascading multiple Astral ARX8 units.
• USB-A port for thumb drives, keyboards, transmitter pairing, and timecode syncing. Supports USB hubs.
• On-the-fly audio output routing changes directly from the Astral HH and Astral TX. Ideal for talkback, guitar tuning etc.
• Ad-hoc handoff of transmitters’ Nexlink control between Astral receivers, ideal for large reality shows
• Flexible tone routing matrix

Ready

When you’re doing bag work, you need a high-quality, high-channel-count audio receiver that won’t weigh

 you down. The Astral ARX8 true diversity wireless receiver was made with portability in mind. It comes

with four receiver channels, and can be expanded to six and eight channels via software license, without

additional hardware. Need to transition to a rack or cart? The Astral ARX8 receiver’s half-unit size will

save you space there, too. It’s ready for anything.

백 작업을 할 때는 무게 부담은 줄이면서도, 고품질·고채널 수를 지원하는 오디오 리시버가 필요합니다.

Astral ARX8 트루 다이버시티 무선 리시버는 휴대성을 염두에 두고 설계되었습니다. 기본 4개의 리시버 채널을 제공하며,

추가 하드웨어 없이 소프트웨어 라이선스를 통해 6채널 및 8채널까지 확장할 수 있습니다. 랙이나 카트 구성으로 전환해야 하나요?

Astral ARX8 리시버의 하프 유닛 사이즈는 그 환경에서도 공간을 절약해 줍니다.

어떤 상황에도 대응할 준비가 되어 있습니다.

Set.

The Astral ARX8 receiver has an advanced set of features inherent in the Astral family of products, including:

Astral ARX8 리시버는 Astral 제품군에 공통적으로 적용되는 고급 기능들을 갖추고 있습니다. 주요 기능은 다음과 같습니다.

Go.

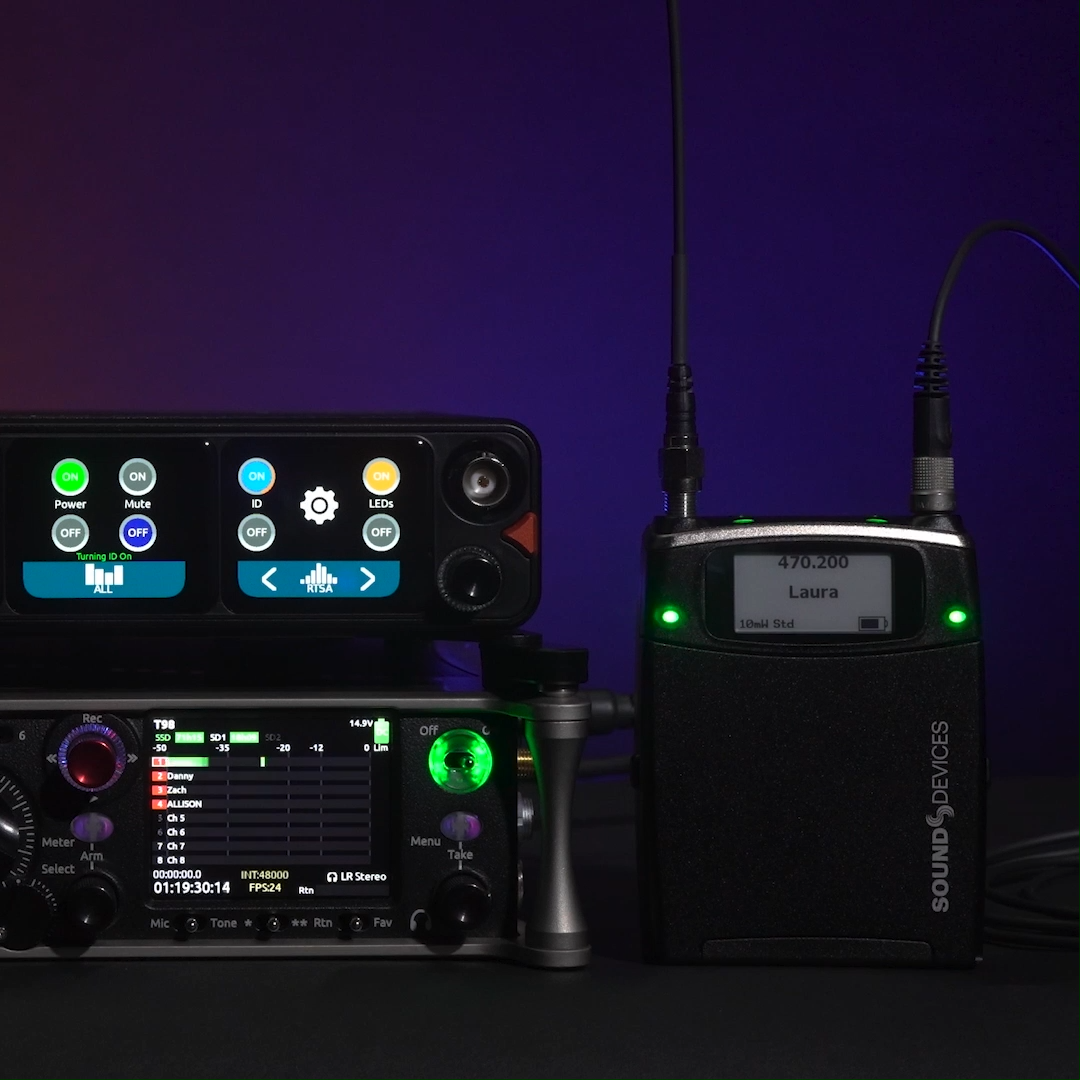

The Astral-ARX8 receiver is ready to go the distance, thanks to Sound Devices’ proprietary NexLink protocol.

Sound Devices의 독자적인 NexLink 프로토콜 덕분에 Astral ARX8 리시버는 장거리 운용에도 완벽하게 대응할 준비가 되어 있습니다.
