Mix anywhere. Fly everywhere
Check 1… 1-2…” – DiGiCo Launches its First Flypack Mixer, the Quantum112
견고하고 튼튼한 Pelican™ Air 1637 케이스 안에 들어가도록 설계, 23킬로그램 무게로 대부분의 항공편에서 표준 위탁 수하물 옵션으로 분류됩니다.
초소형 형태임에도 불구하고, Quantum112는 기능과 성능 면에서 월등한 존재이며, 그 혈통 면에서 완전한 Quantum입니다.
가장 최신의 7세대 FPGA를 기반으로 한 DiGiCo의 최신 제품은, 풀 채널 프로세싱이 적용된 80개의 input channels , 24개의 Aux/Subgroup busses, LR/LCR master busses , 그리고 12×8 matrix 를 제공합니다. 또한 12개의 컨트롤 그룹과 2개의 솔로 채널도 사용할 수 있습니다.
17인치, 1000니트 고휘도 멀티터치 스크린을 장착한 Quantum112는, 빠르고 직관적인 조작을 위한 미터브리지와 소프트 퀵 셀렉트 버튼을 함께 제공합니다.
추가로, 18개의 개별 TFT 채널 디스플레이가 장착되어 명확한 사용자 피드백과 상호작용을 제공합니다.

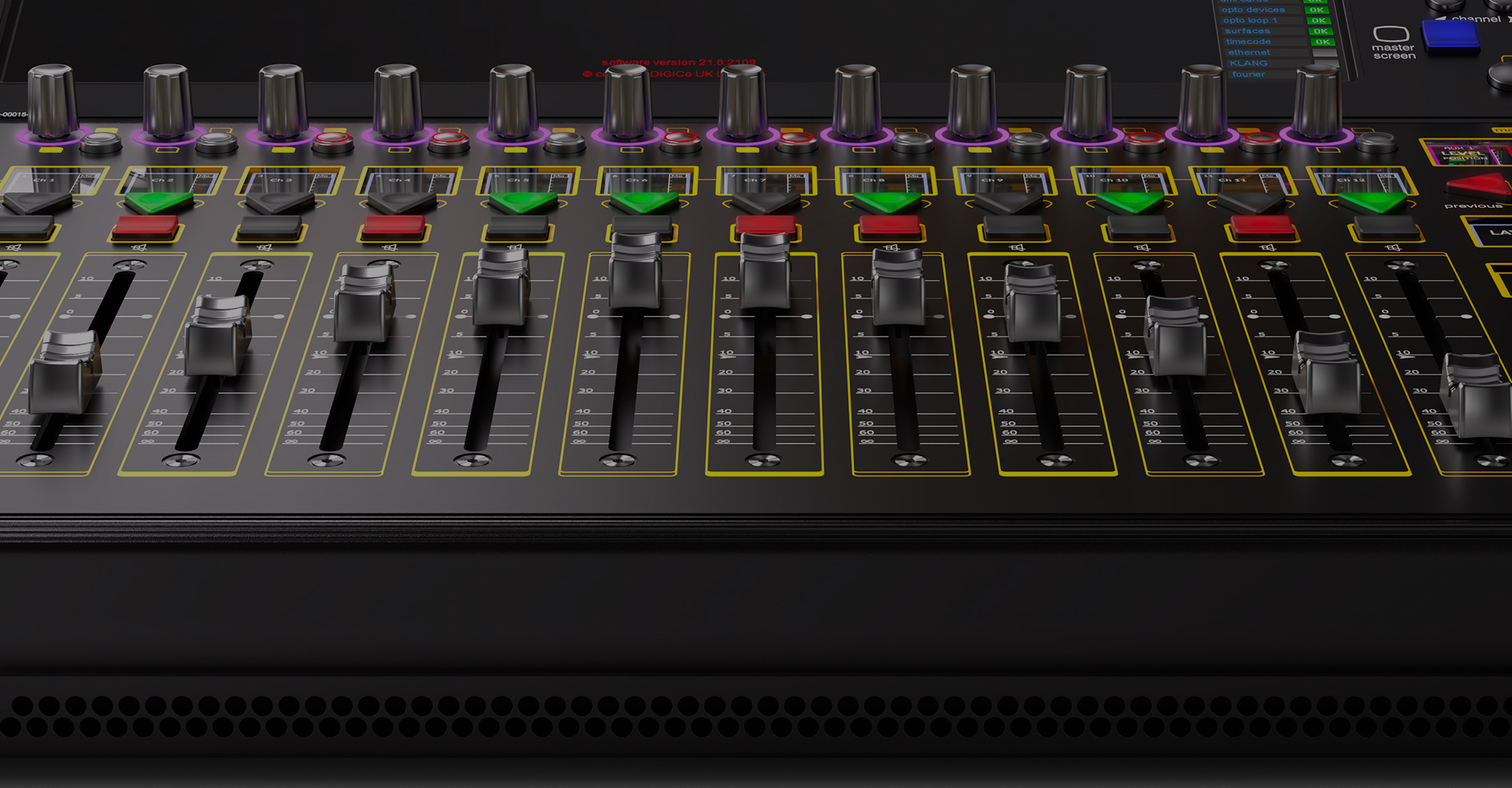

메인 디스플레이 아래에는, 부드러운 움직임과 정밀한 제어를 위해 새로 선정된 100mm 터치 감응 페이더 12개가 배치되어 있습니다.
DiGiCo Quantum112는 Quantum 시리즈의 익숙한 기능들 —즉, 20개의 Mustard 프로세싱 채널 스트립, 6개의 Spice Rack 플러그인 스타일 네이티브 FPGA 프로세싱 옵션, 그리고 24개의 Nodal Processing — 을 자연스럽게 포함하고 있습니다. 또한 12개의 그래픽 EQ와 8개의 FX Rack 슬롯도 사용할 수 있습니다.
The rear panel has built-in 64×64 Primary and Secondary Dante Ports on Ethercon connectors. 16 Mic/Line inputs and 8 line outputs, both of which utilise ‘Stadius’ 32-bit pre-amps and DACs. It shall also have 1 AES/EBU input (2 channels) and 1AES/EBU outputs (2 channels), 4 sets of MADI I/O, giving up to 4 MADI interfaces or up to 2 redundant MADI interfaces at 48kHz or 2 interfaces at 96kHz, 2 DMI slots and inbuilt UB MADI (USB Type B audio I/O interface for recording and playback of up to 32 channels).
Local I/O:
Stadius 32-bit local I/O Sample Rate: 48kHz or 96kHz, Processing Delay: 0.5ms Typical (Mic in to Line out, no channel Processing), Internal Processing: Up to 40-bit, Floating Point, A>D & D>A: 32-bit Converter Bit Depth, Frequency Response: +/- 0.2dB (20Hz – 20kHz), THD+N (Mic In to AES Out): <0.002% @ 1kHz, 0dB gain, -10dBFS out, 22Hz-20kHz, THD+N (AES In to Line Out): <0.002% @ 1kHz, +16dBu out, 22Hz-20kHz, Channel Separation/Crosstalk (Mic In to Line Out): >100dB @ 10kHz, Residual Output Noise: <93dBu Typical (20Hz – 20kHz), Equivalent Input Noise (EIN): <-127.5dBu A-weighted, 22Hz – 20kHz, Maximum Output Level: +22dBu, Maximum Input Level: +22dBu
MADI:
Integrated 32 Channel UBMADI, 4 x MADI BNC I/O @ 48k, 2 interfaces at 96k, 1 x UB MADI (USB Type B Audio I/O interface for recording and playback of up to 32 channels.
Optocore:
We have a Optocore option, providing a single loop which give 504 additional audio paths at 48kHz and 96kHz. The Optocore connector type shall be chosen from HMA, OpticalCon or ST. The Optocore Mode can be chosen from MultiMode or SingleMode.
DMI:
Compatible DMI Cards: ADC / AES / AMM / AVB / Aviom / DAC / Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C / ME / Mic / Waves
This card will provide 56 Input and 56 output channels at 48kHz with Primary and Secondary (backup) optical connections.
DMI-HYDRA 2This card will provide 56 Input and 56 output channels at 48kHz with Primary and Secondary (backup) optical connections.
This card provides 16 analogue inputs on 2 x 25 way “D” connectors. The ADC card is a line card only. There is no microphone amplifier or phantom power available. There is no gain control function for these inputs (only digital trim). Maximum input level +22dBu.
DMI-ADCThis card provides 16 analogue inputs on 2 x 25 way “D” connectors. The ADC card is a line card only. There is no microphone amplifier or phantom power available. There is no gain control function for these inputs (only digital trim). Maximum input level +22dBu.
This card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack, SD-Rack, SD-MiNiRack)
DMI-MADI-BThis card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack, SD-Rack, SD-MiNiRack)
This card provides 64 input and 64 output channels at 48KHz and 32 input and 32 output channels at 96KHz. It is provided with Primary and Secondary (backup) Gigabit Ethernet ports for connection to the Dante network.
DMI-DANTEThis card provides 64 input and 64 output channels at 48KHz and 32 input and 32 output channels at 96KHz. It is provided with Primary and Secondary (backup) Gigabit Ethernet ports for connection to the Dante network.
This card provides 16 analogue outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale)
DMI-DACThis card provides 16 analogue outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale)
This card provides 16 Inputs (8 pairs) and 16 outputs (8 pairs) on 2 x 25 way “D” connectors. All AES inputs are provided with sample rate conversion (SRC) by default. All AES outputs are synchronised to the mixer system clock.
DMI-AESThis card provides 16 Inputs (8 pairs) and 16 outputs (8 pairs) on 2 x 25 way “D” connectors. All AES inputs are provided with sample rate conversion (SRC) by default. All AES outputs are synchronised to the mixer system clock.
This card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack, SD-Rack, SD-MiNiRack)
DMI-MADI-CThis card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack, SD-Rack, SD-MiNiRack)
This card provides 16 output channels at 48kHz (with SRC) and Supports Aviom's proprietary A-Net Pro16 protocol. It has 1 Cat5e connection and faceplate DIP switched for Stereo output selection.
DMI-AVIOMThis card provides 16 output channels at 48kHz (with SRC) and Supports Aviom's proprietary A-Net Pro16 protocol. It has 1 Cat5e connection and faceplate DIP switched for Stereo output selection.
This card will provide 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Cat5e/Cat6 connections.
DMI-WAVESThis card will provide 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Cat5e/Cat6 connections.
This card offers both the SD-Range and the S-Series consoles 48 channels of automatic microphone mixing which can be used in any console input channel.
DMI-AMMThis card offers both the SD-Range and the S-Series consoles 48 channels of automatic microphone mixing which can be used in any console input channel.
This card offers a 40 output interface to Allen & Heath ME-1 or ME-500 Personal Mixers. Multiple personal Mixers can be connected to the DMI ME via the ME-U Hub.
DMI-METhis card offers a 40 output interface to Allen & Heath ME-1 or ME-500 Personal Mixers. Multiple personal Mixers can be connected to the DMI ME via the ME-U Hub.
This card provides 8 microphone preamp inputs on a 1 x 5 way "D" connector. Each channel has individual, low noise gain control and phantom power. User interface is through a normal channel strip on your console. Maximum input level is +22dBu.
DMI-MICThis card provides 8 microphone preamp inputs on a 1 x 5 way "D" connector. Each channel has individual, low noise gain control and phantom power. User interface is through a normal channel strip on your console. Maximum input level is +22dBu.
This card allows S-Series Consoles to connect to the A168 STAGE Stage Rack. Each Ethercon port supports up to 32 I/O, for a total channel count of 64 I/O.
DMI-A3232This card allows S-Series Consoles to connect to the A168 STAGE Stage Rack. Each Ethercon port supports up to 32 I/O, for a total channel count of 64 I/O.
This card allows Optocore audio over HMA, OpticalCon or ST connectors.
DMI-OPTOThis card allows Optocore audio over HMA, OpticalCon or ST connectors.
This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.
DMI-DANTE64@96This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.
This card provides ultra low latency KLANG immersive processing for up to 16 2-channel mixes with 64 inputs at 48kHz or 96kHz.
DMI-KLANGThis card provides ultra low latency KLANG immersive processing for up to 16 2-channel mixes with 64 inputs at 48kHz or 96kHz.
INPUT CHANNELS
DYNAMIC EQ
DIGITUBES
DIGITAL FX
Parametric or Dynamic EQ
12 input x 8 output Full Processing Matrix
12 Control Groups (CGs)
2 Solo Busses
12 x 32-band GEQs
8 Internal Stereo FX ProcessorsDelays
Parametric EQ or All Pass Filters
Compressor, Optical Compressor, FET Limited
24 Nodal Processing 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
Multiband Compressors available on every channel, Buss
and Nodal Processor
Dynamic EQs available on every channel, Buss and Nodal
Processor
DiGiTuBes available on every channel & Buss
Virtual Soundcheck
True Solo Function
